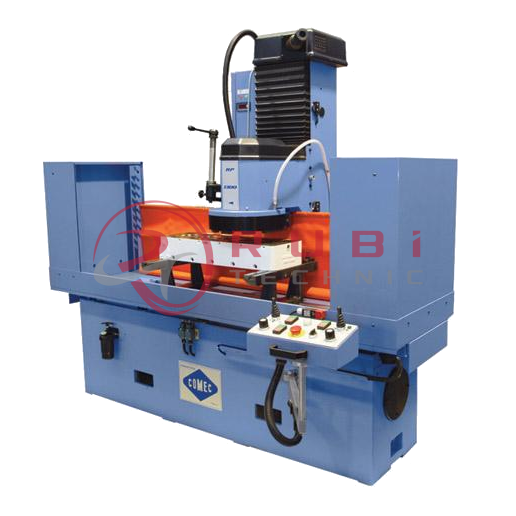

Resurfacing machine

Product Code: RP1300
OEM Codes :
Product Features :

Specifications



Standard equipment

Table travel

1400 mm

Adjustable table speed with recirculating-ball screw

Segmented grinding wheel complete with abrasive sectors for cast iron (10 pcs.)

Splash and safety guard

Fast motorized head feed

Cooling system complete with pump

Settling tank

Abrasive sector dresser

RTV099 Starwheel dresser

UT0003 Head resurfacing tool

PV0160 Pair of parallel supports

PV0021 Large clamps (2 pcs.)

PV0022 Small clamps (4 pcs.)

Lubricant for slides

Emulsifiable liquid

Wrench set

Instruction manual



Maximum working lenght

1225 mm

Maximum working width

355 mm (405 mm Optional)

Maximum working height

720 mm

Useful table surface

920x230 mm

Grinding wheel diameter

355 mm (405 mm Optional)

Spindle rotation speed

300÷1500 RPM

Adjustable table feed speed

0÷1500 mm/min

Spindle motor

4.0 kW

Table motoreducter

0.75 kW

Rapid feed motor

0.5 kW

Cooling pump motor

0.25 kW

Dimensions (LxLxH)

2180x1280x2000 mm

Weight

1410 kg
